• Auxiliary pwr point
• Inside hood release

• (2) front tow hooks
• 4-wheel anti-lock brakes
• Four wheel drive
• Front/rear stabilizer bars
• HD gas shock absorbers
• Manual transfer case & hubs
• Pwr steering w/steering damper

• 4-wheel anti-lock brakes
• Driver/front passenger airbags
• Dual-note electric horn

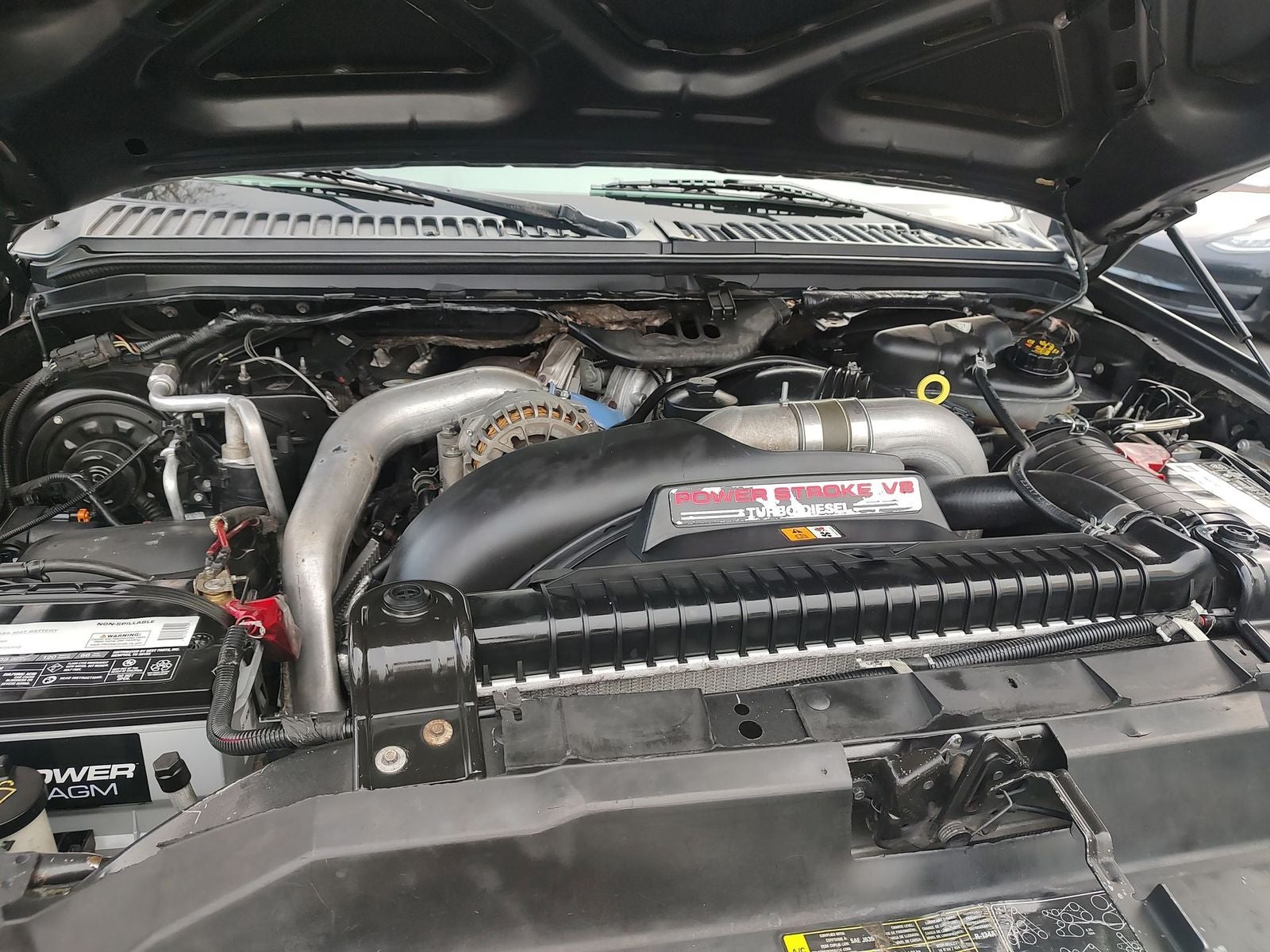

6.0L DI V8 POWER STROKE TURBO-DIESEL ENGINE

• 110-amp HD alternator
• dual 78 amp/hr 750 CCA battery
• turbo boost gauge
• air filter minder

• GVWR: 17,950 lb Payload Package #1

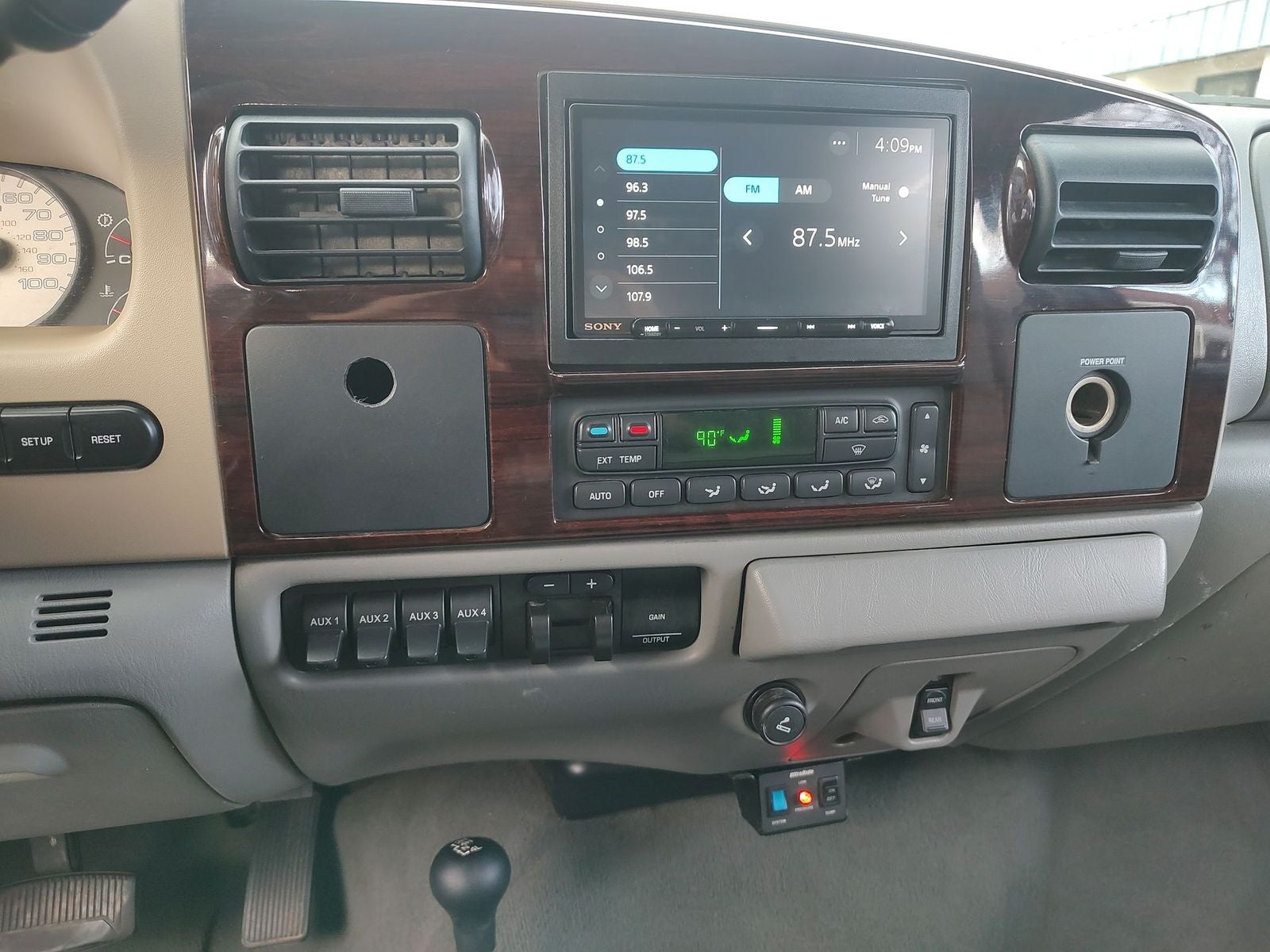

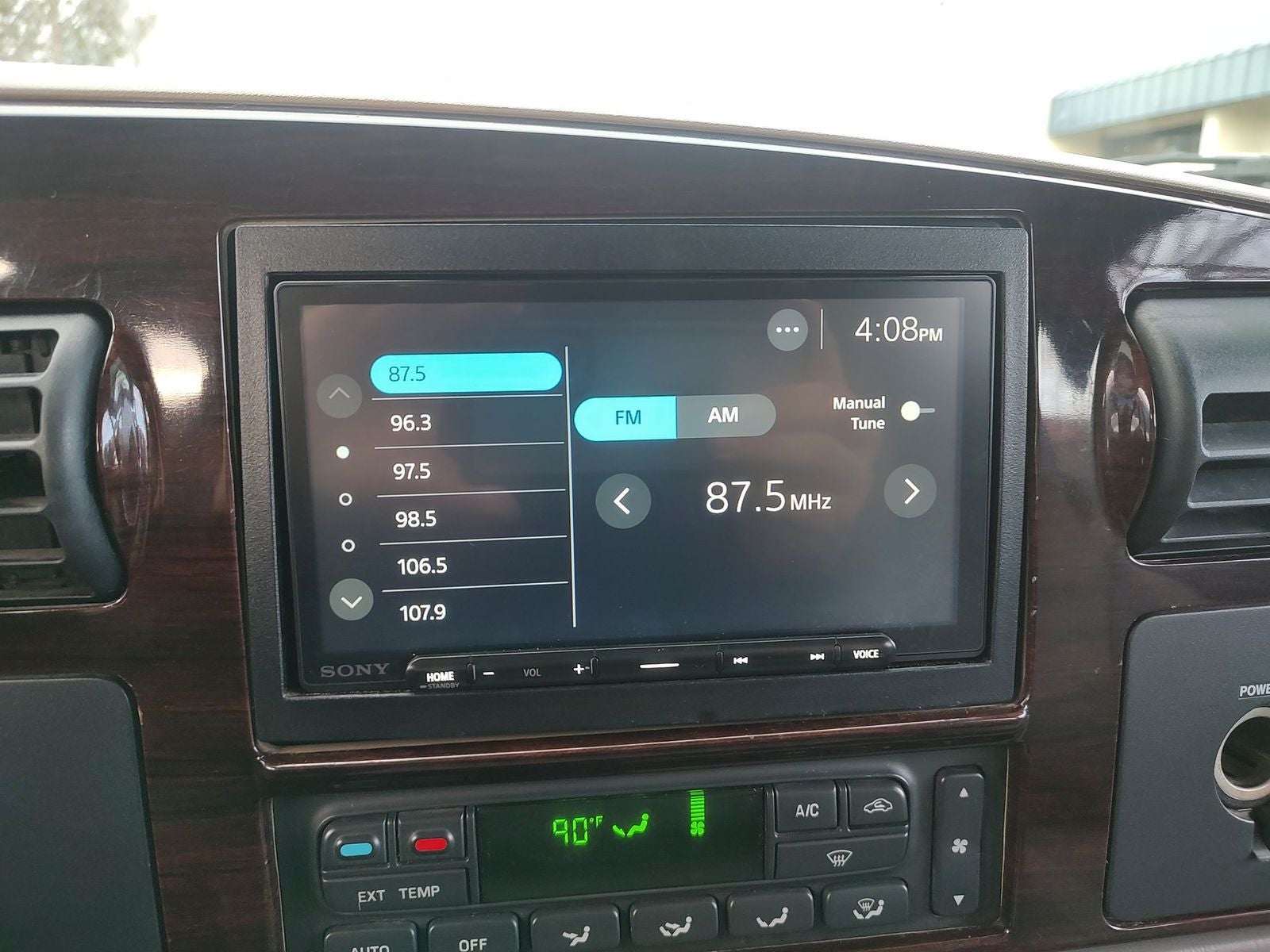

• AM/FM radio
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Rear anti-roll bar
• Dual rear wheels
• Front reading lights
• Passenger vanity mirror
• Rear reading lights

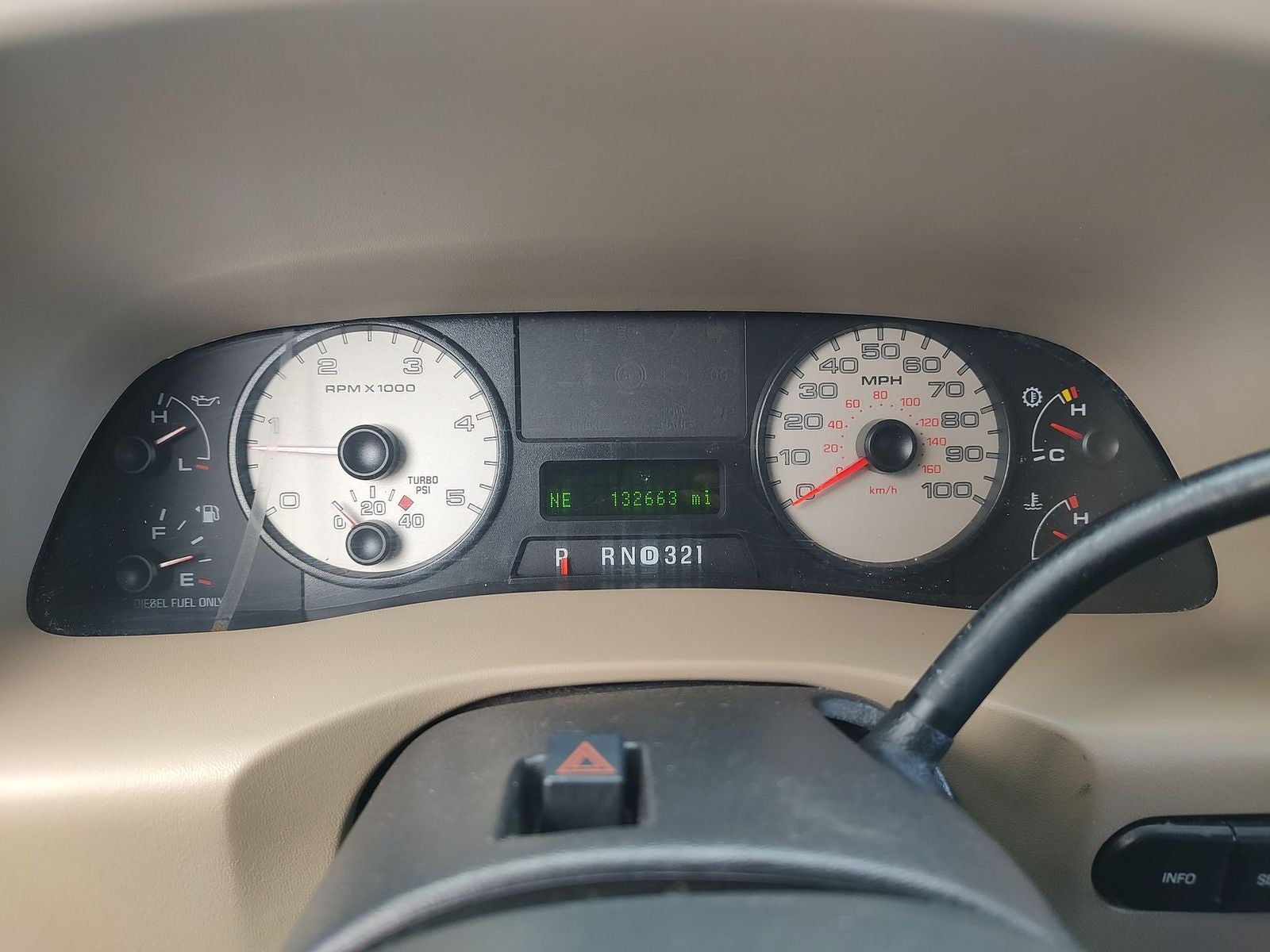

• Tachometer
• Variably intermittent wipers
• 4.88 Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 13,660
• Curb Weight - Front (lbs): 4711
• Curb Weight - Front (lbs): 4259
• Curb Weight - Rear (lbs): 3079
• Curb Weight - Rear (lbs): 3127
• Gross Vehicle Weight Rating Cap (lbs): 17,950
• Gross Combined Wt Rating (lbs): 26,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17,000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17,400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1740
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 13,660
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13,660
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.35 x 0.47
• Tires
• Front Tire Order Code: T91
• Rear Tire Order Code: T91

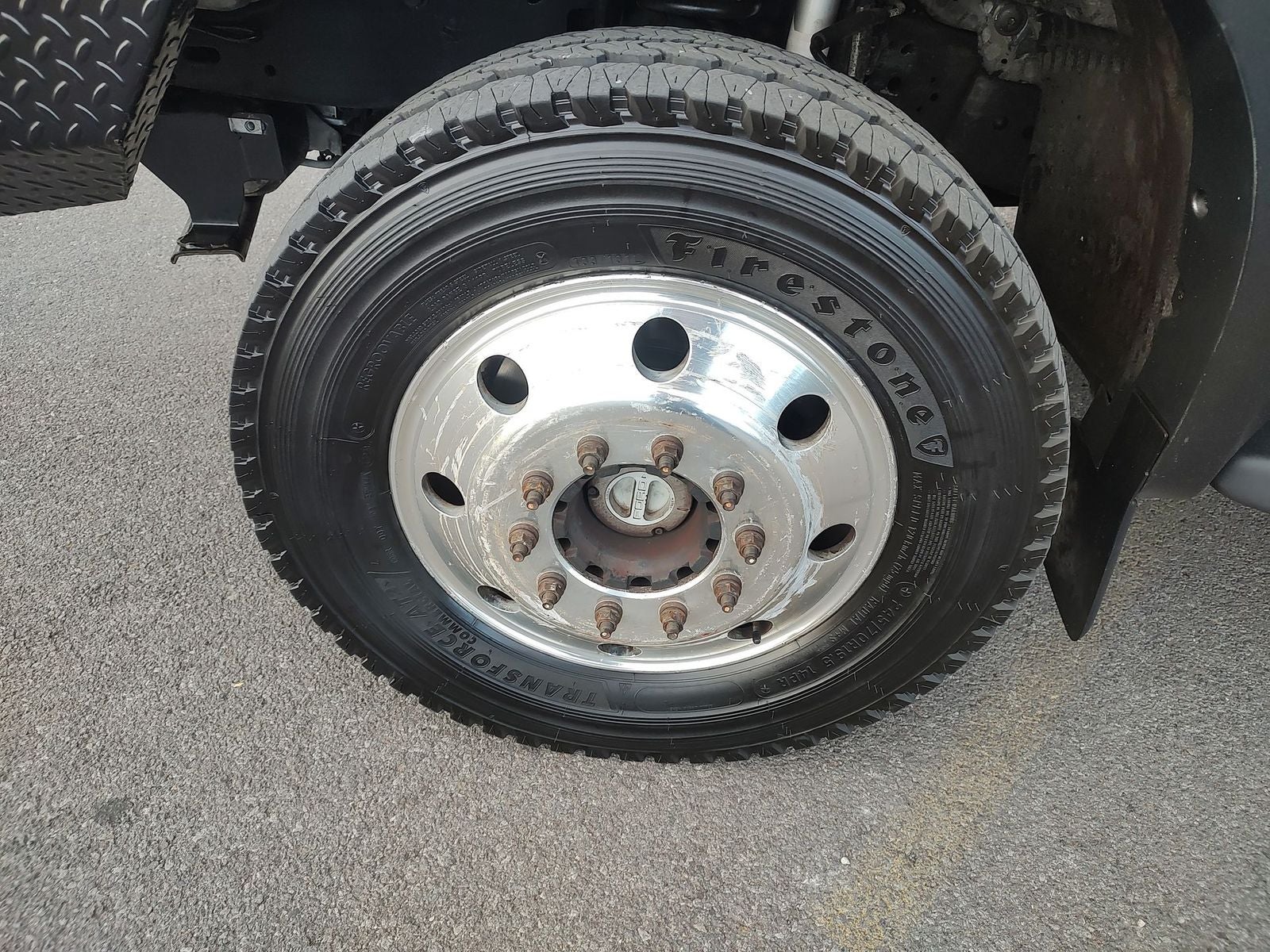

• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Wheels
• Front Wheel Size (in): 19.5 x 6
• Rear Wheel Size (in): 19.5 x 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: 18.0
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): 53.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 176.2
• Length, Overall w/o rear bumper (in): 261.0
• Width, Max w/o mirrors (in): 93.6
• Height, Overall (in): 81.3
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 153.4
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Frame (in): 32.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.0
• Interior Dimensions

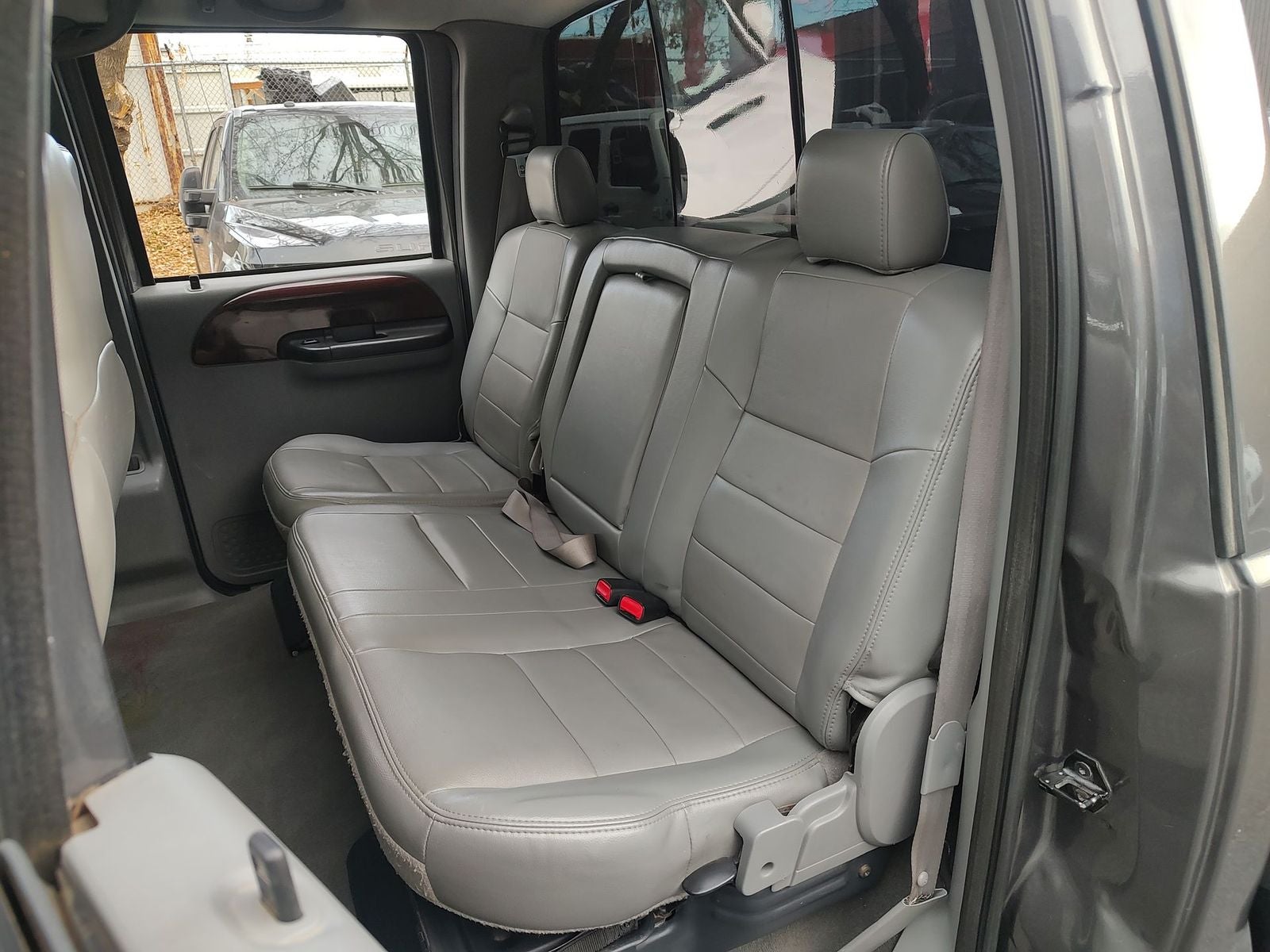

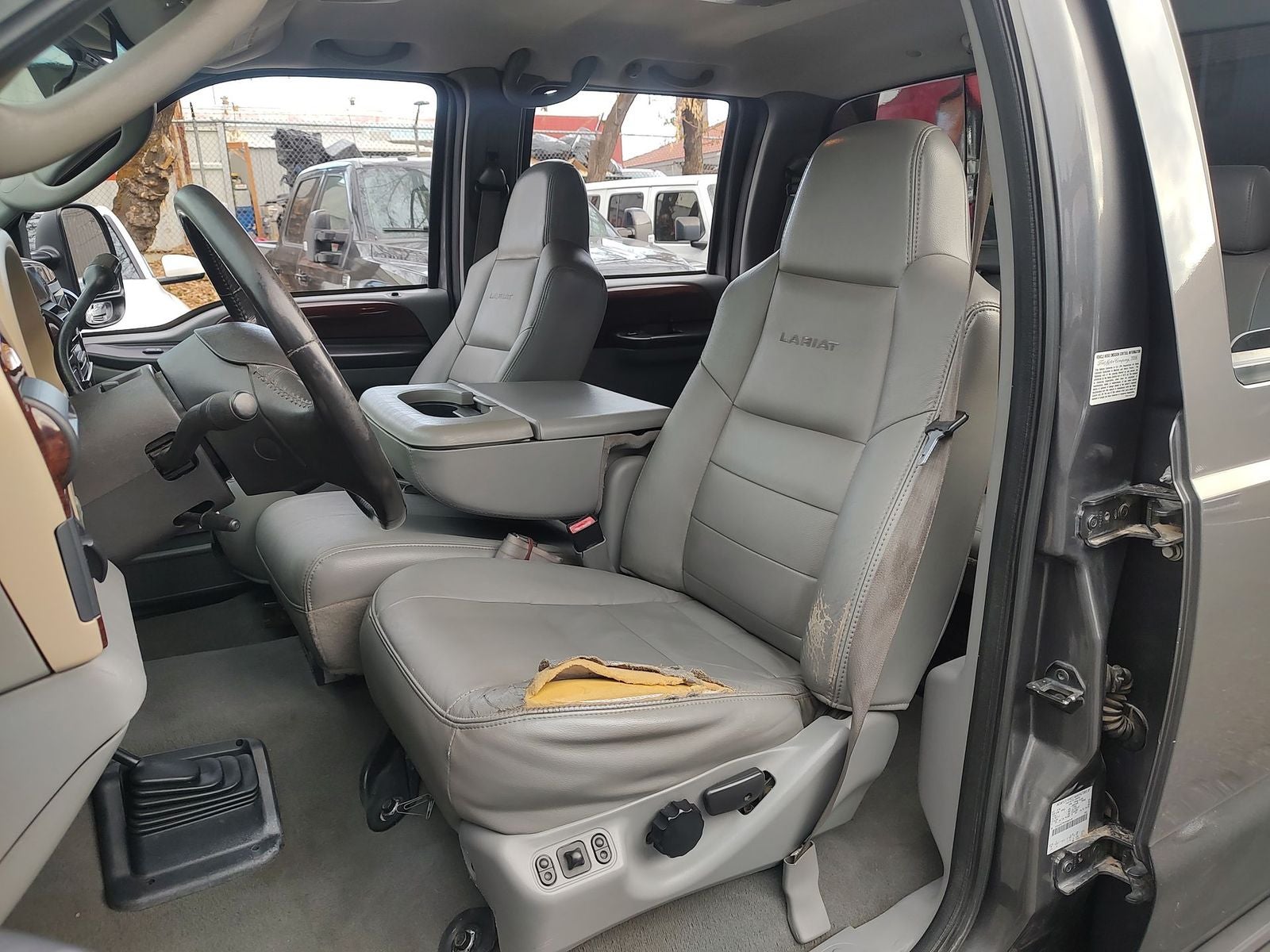

• Passenger Capacity: 6
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Second Head Room (in): 40.8
• Second Leg Room (in): 41.7
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.3
• Summary

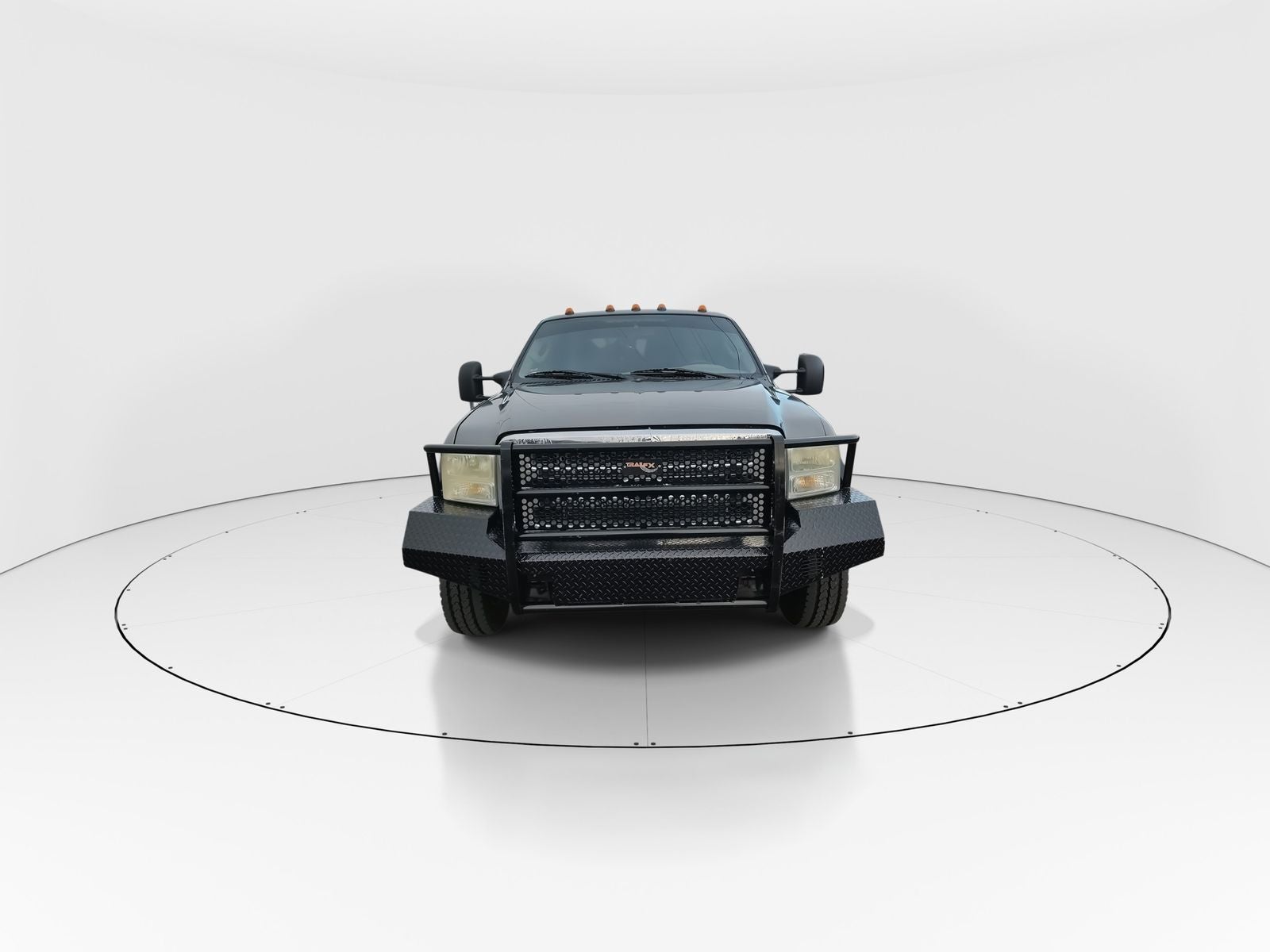

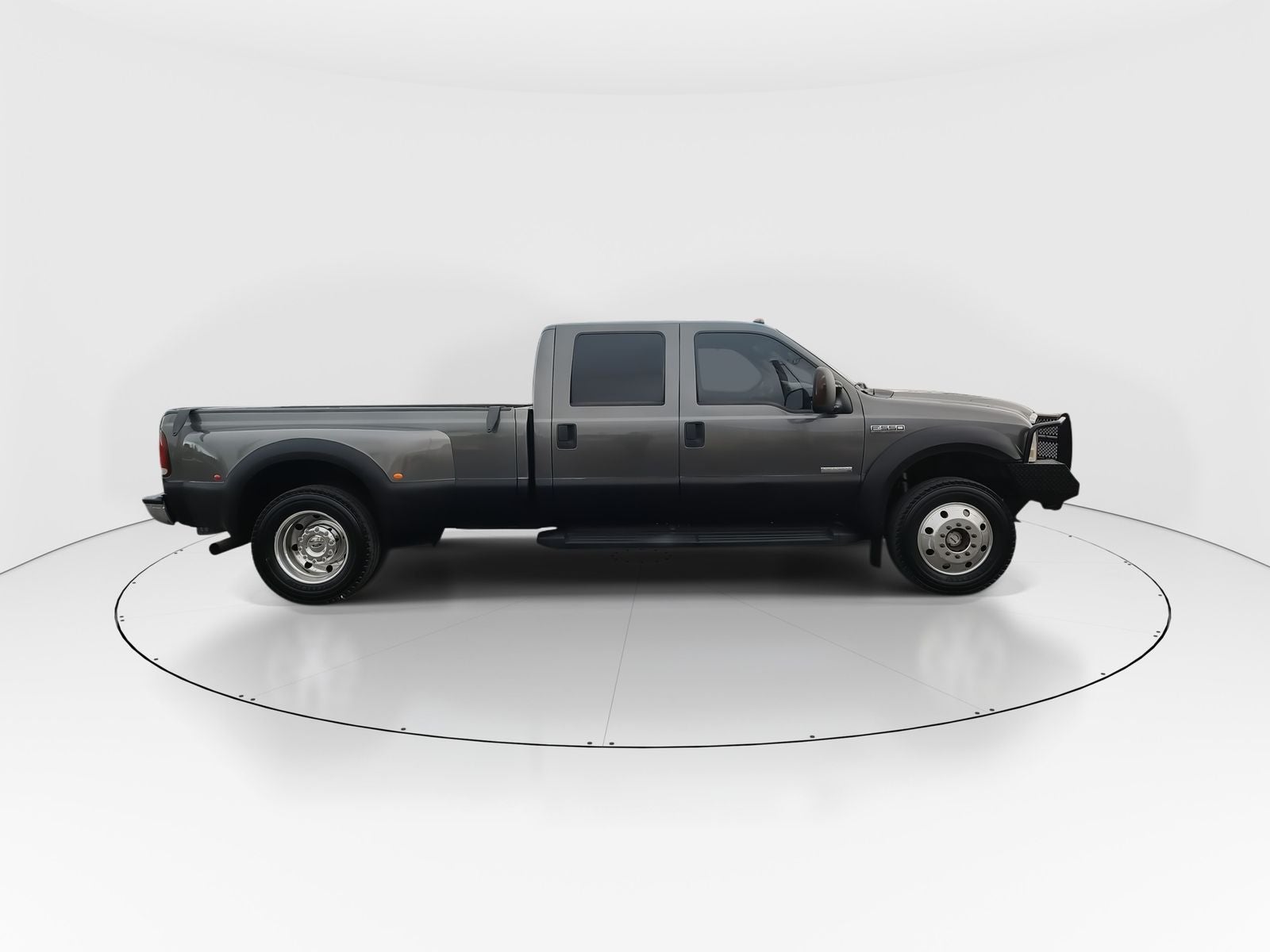

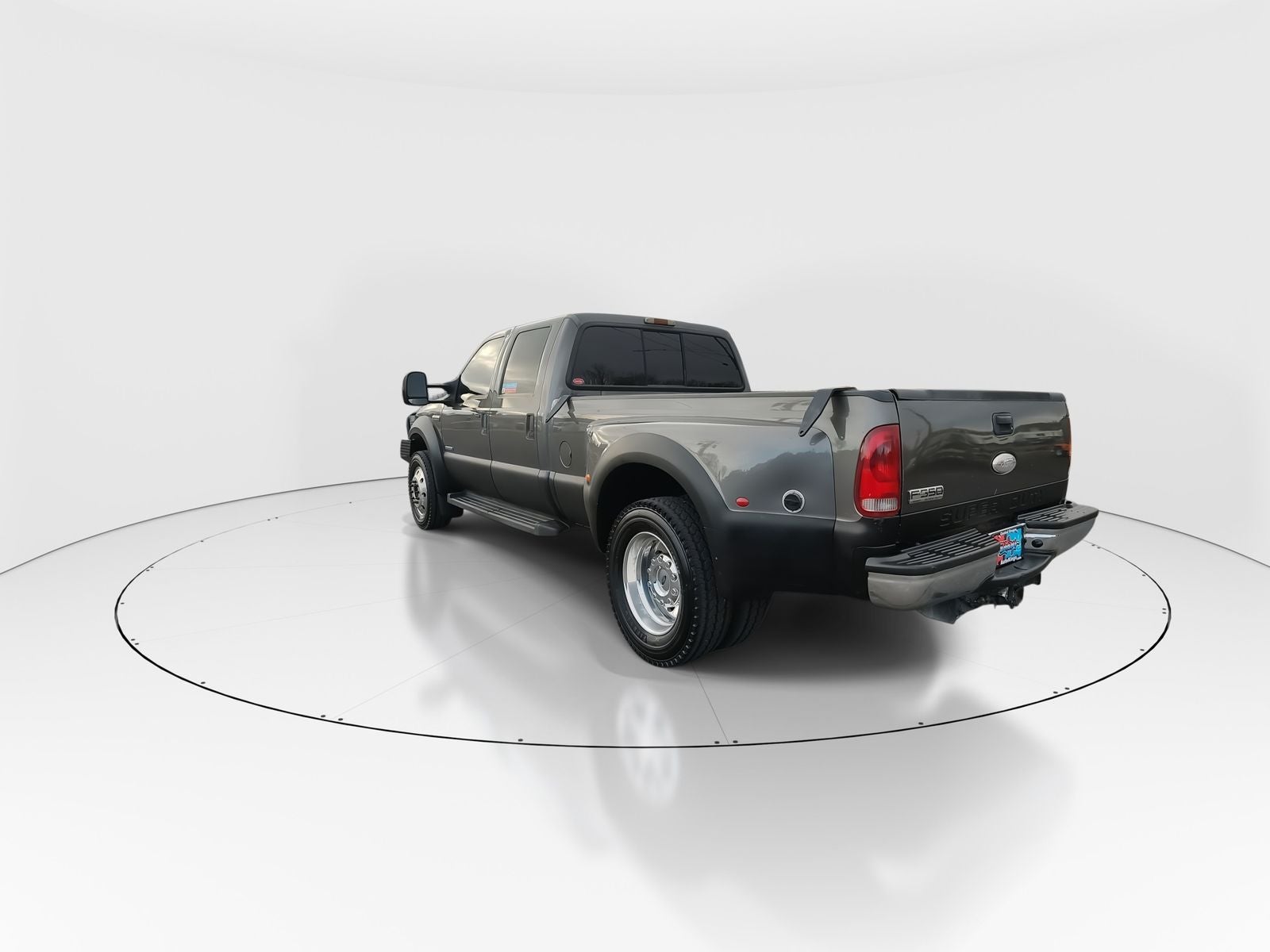

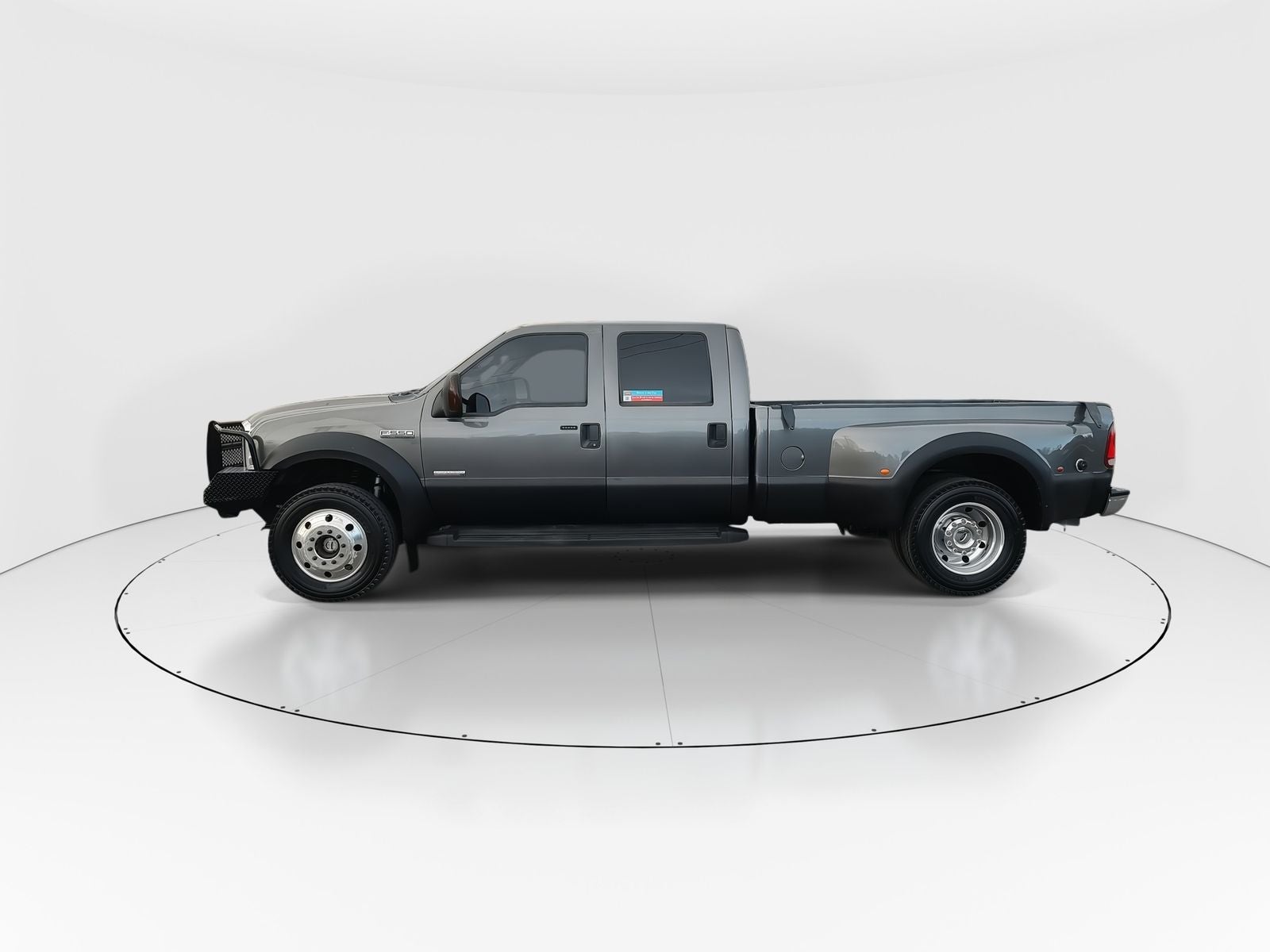

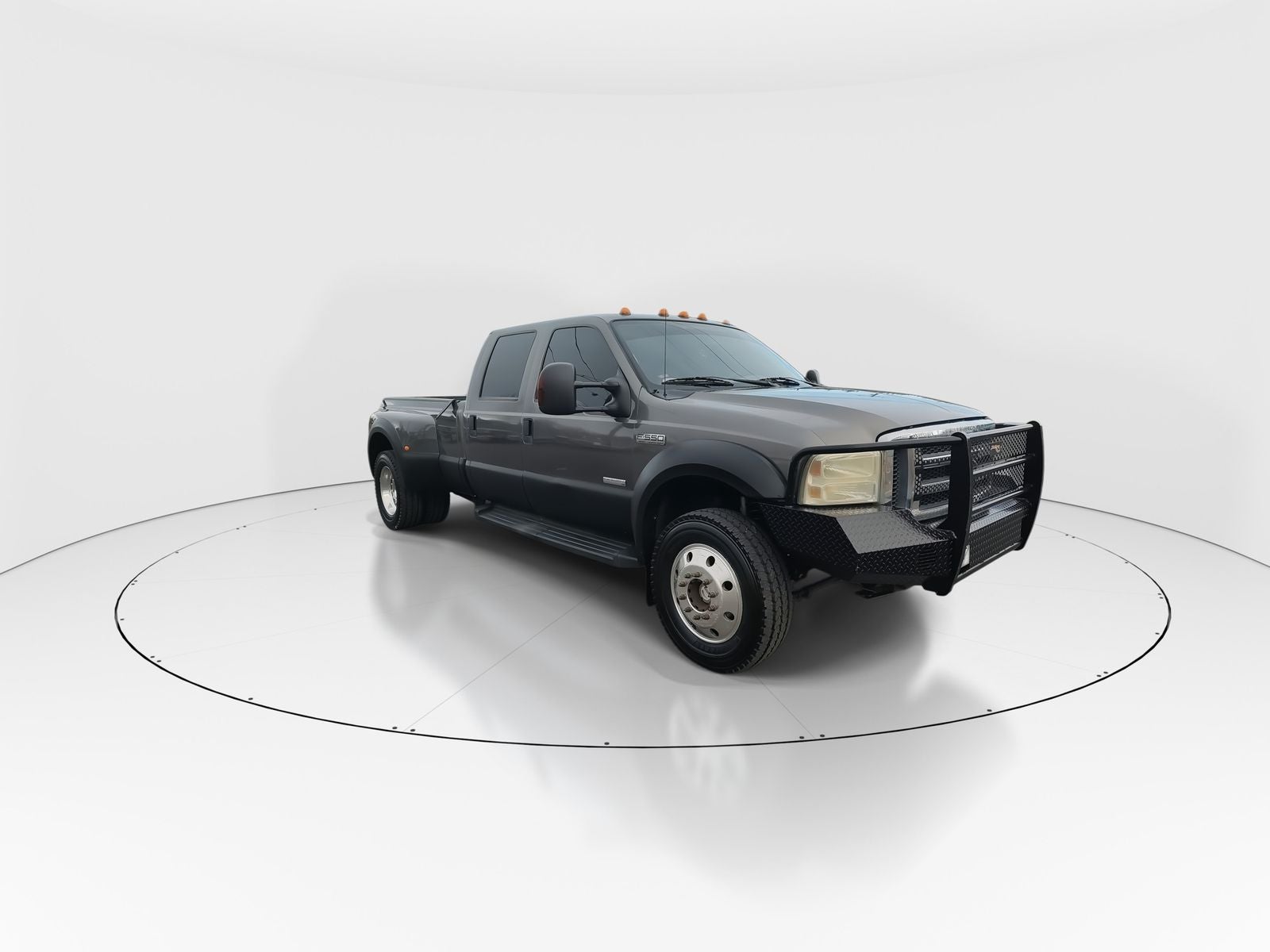

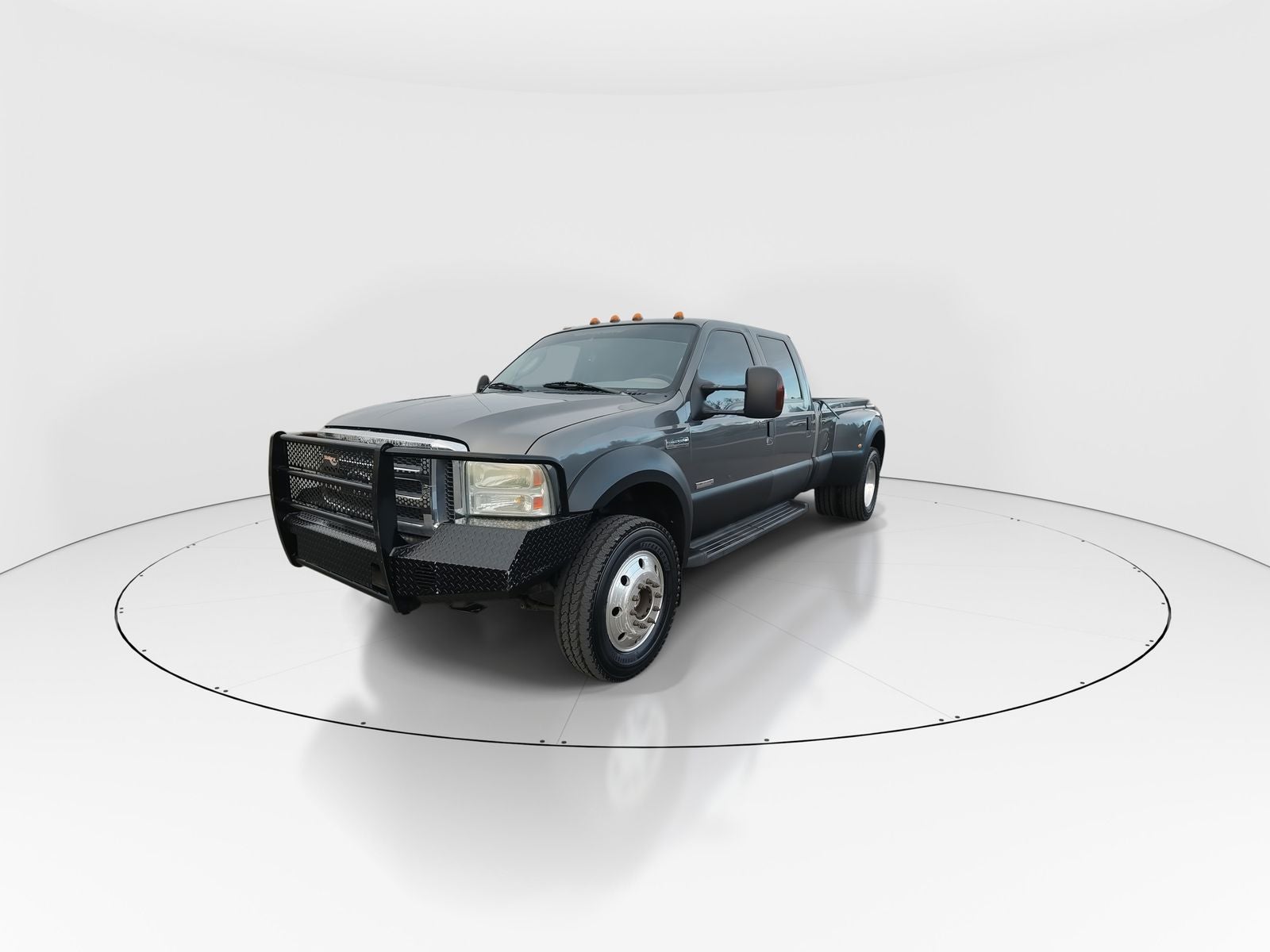

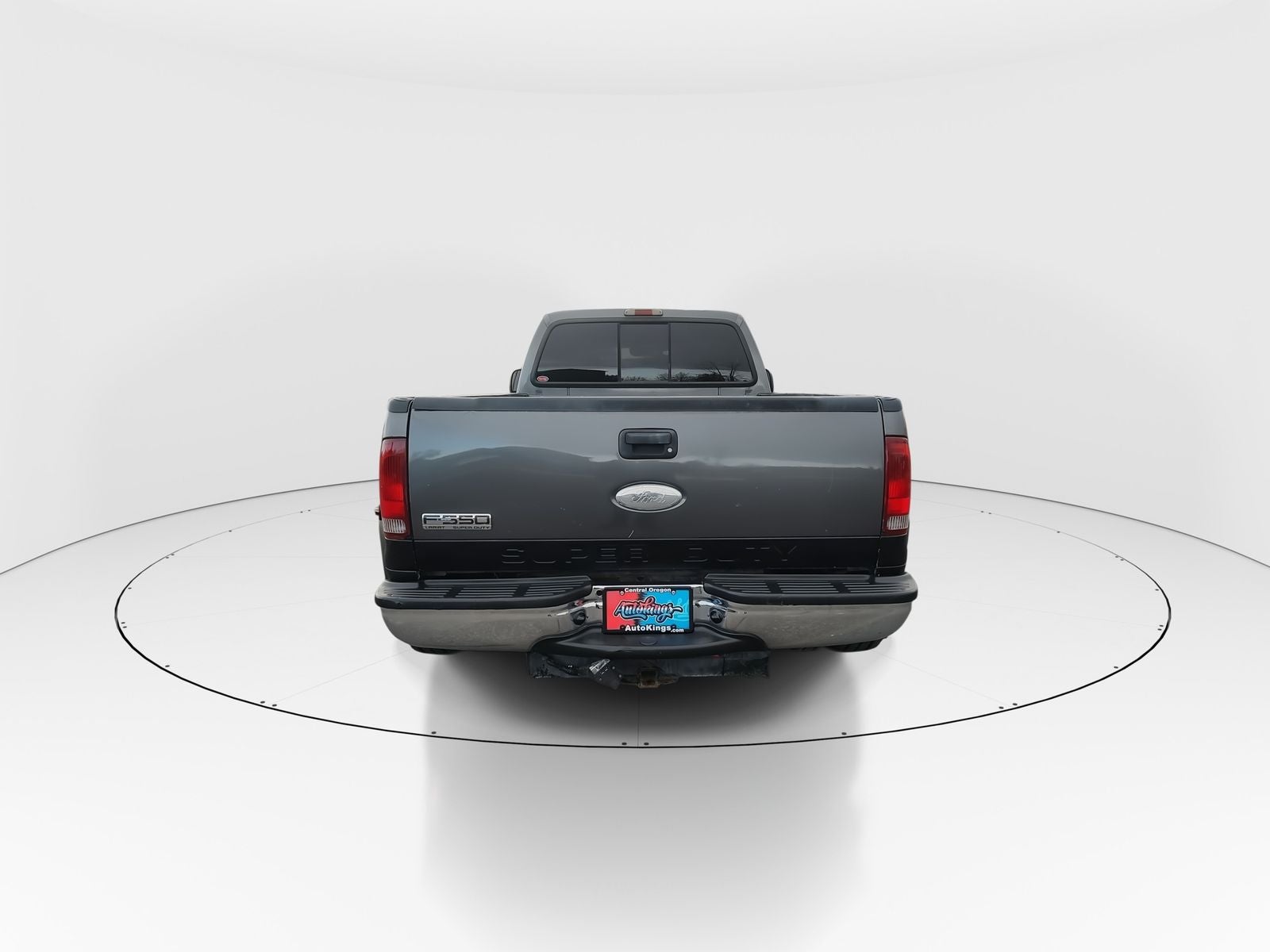

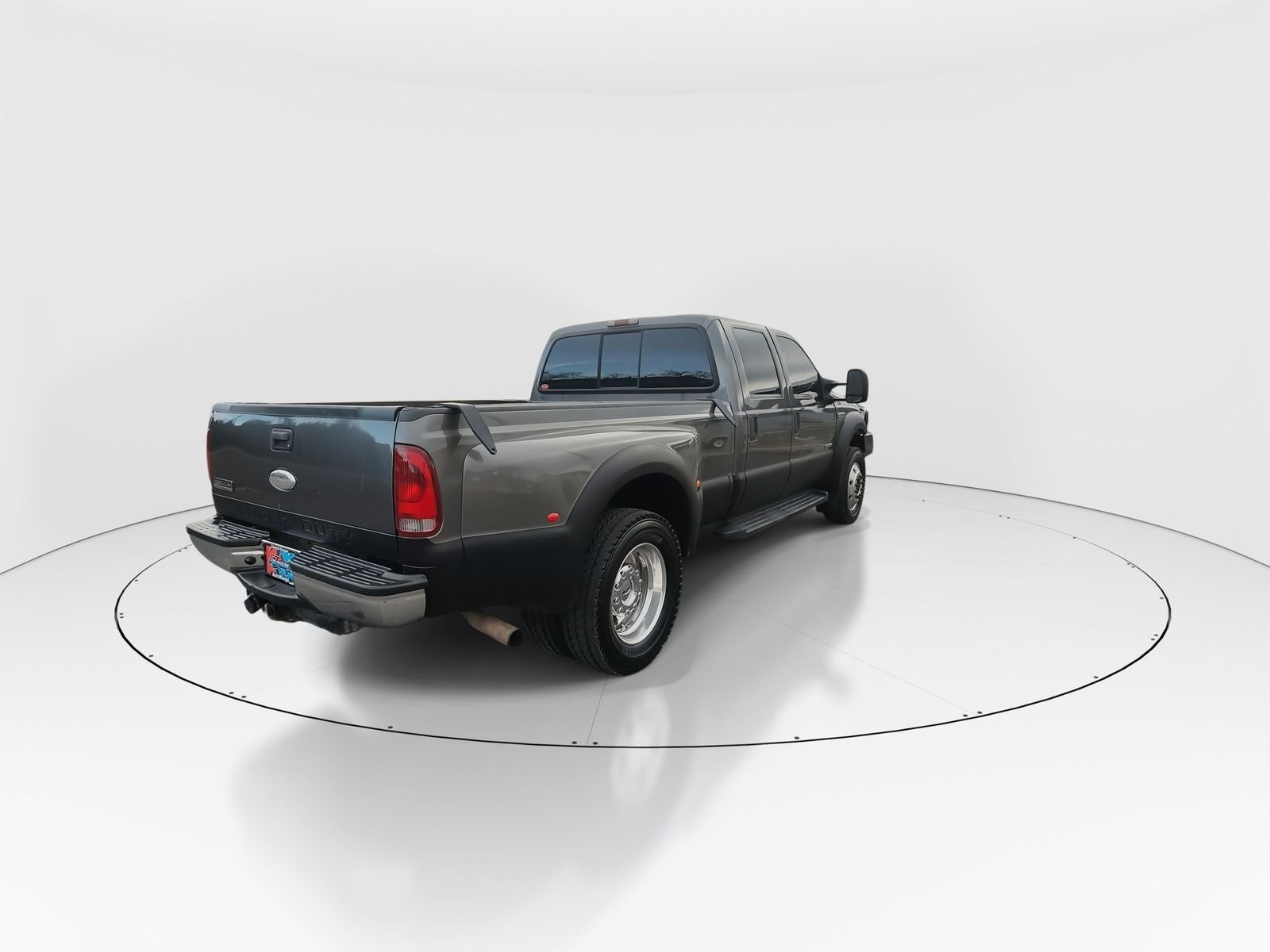

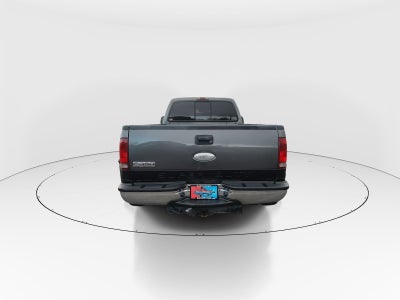

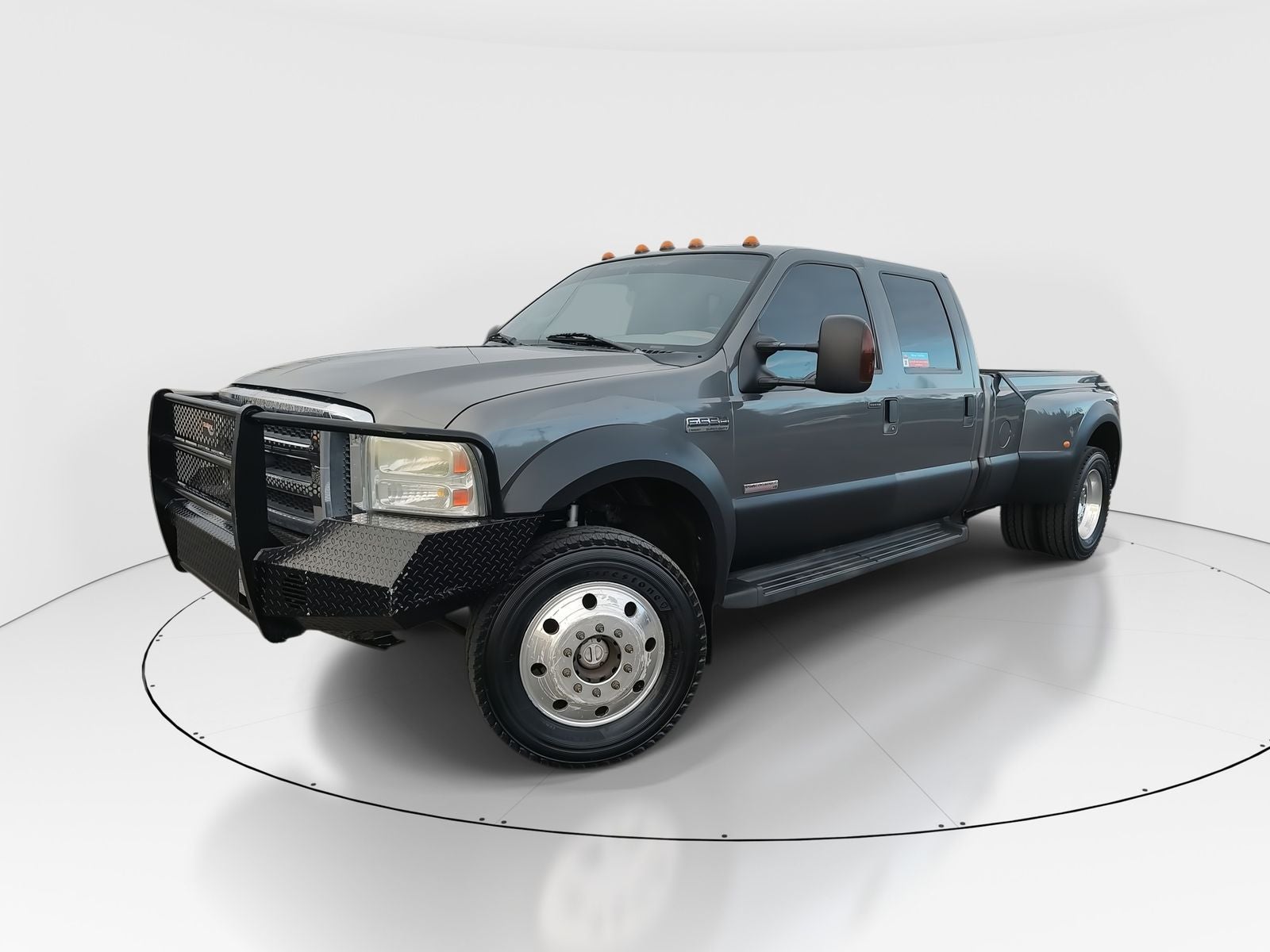

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: Crew Cab
• Body Code: 176" WB
