• Chromed front bumper
• Front wheel opening flares
• Molded grille painted light argent w/dark argent air intake areas
• Single rectangular halogen headlamps
• Roof marker lamps
• Cargo area lamps
• Daytime running lamps
• Dual stainless-steel camper-type 7.5" x 10.5" mirrors
• Solar-Ray tinted glass (all windows)
• Intermittent windshield wiper system

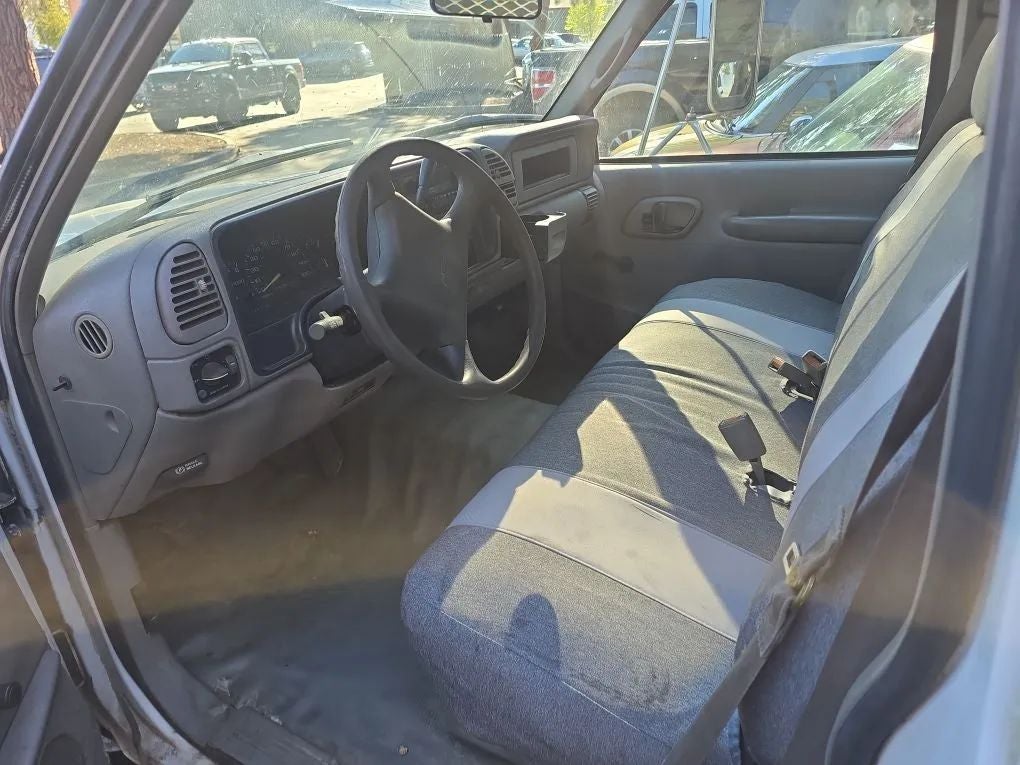

• 3-passenger vinyl bench seat w/folding backrest
• Color-keyed, rubber full-floor covering
• Simulated leather steering wheel
• Passlock theft deterrent security system
• Key-in-ignition warning buzzer
• Deluxe heater/defogger
• ETR AM/FM stereo-inc: seek-scan, digital clock, 4 speakers
• Dual in-dash cup holders
• Dual covered pwr points
• Cigarette lighter
• Molded plastic door trim panels w/dual integral armrests/map pockets
• Color-keyed cloth headliner w/matching retainer moldings
• Dual color-keyed cloth sunshades w/driver storage strap, passenger mirror
• Passenger assist handle
• Lighting-inc: dome, delayed entry feature, reading, ashtray, glove-box, underhood
• Dual coat hooks

• 4-wheel anti-lock brake system
• Manual lap/shoulder safety belts, outboard seat positions
• Outboard shoulder belt height adjusters
• Manual lap safety belt, center seat position
• Daytime running lamps
• Side guard door beams
• Dual note horn

7.4L (454) SFI V8 (VORTEC) ENGINE

• (STD)

• Tilt Wheel
• Air Conditioning
• AM/FM Stereo
• Power Door Locks
• Power Steering
• Cruise Control
• Manual 5-Spd
• V8 454/7.4 Liter
• Cassette
• Power Windows
• 2WD
• ABS (4-Wheel)
• Oversized Premium Wheels 20+

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 100
• Maximum Alternator Watts: 1200
• Cooling System
• Total Cooling System Capacity (qts): 22.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 11,000
• Curb Weight - Front (lbs): 3545
• Curb Weight - Rear (lbs): 2573
• Gross Vehicle Weight Rating Cap (lbs): 15,000
• Gross Combined Wt Rating (lbs): 19,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Tapered Leaf Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 5000
• Spring Capacity - Rear (lbs): 11,000
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 11,000
• Axle Ratio (:1) - Rear: 4.63
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.90 x 1.43
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.43
• Tires
• Front Tire Order Code: XTN
• Rear Tire Order Code: YTN
• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 2595
• Rear Tire Capacity (lbs): 2855
• Revolutions/Mile @ 45 mph - Front: 645
• Revolutions/Mile @ 45 mph - Rear: 645
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 18.6
• Steering Ratio (:1), At Lock: 17.8
• Turning Diameter - Curb to Curb (ft): 52.9
• Turning Diameter - Wall to Wall (ft): 54.8
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22
• Aux Fuel Tank Capacity, Approx (gal): 18
• Fuel Tank Location: Inboard LH Frame
• Aux Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 159.5
• Length, Overall w/o rear bumper (in): 248.5
• Width, Max w/o mirrors (in): 84.2
• Height, Overall (in): 77.3
• Overhang, Front (in): 37.9
• Overhang, Rear w/o bumper (in): 51.0
• Front Bumper to Back of Cab (in): 113.6
• Cab to Axle (in): 84.0
• Cab to End of Frame (in): 135.0
• Ground to Top of Frame (in): 31.5
• Frame Width, Rear (in): 34.0
• Ground Clearance, Front (in): 8.4
• Ground Clearance, Rear (in): 6.9
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.0
• Front Leg Room (in): 41.5
• Front Shoulder Room (in): 65.0
• Front Hip Room (in): 60.1
• Summary

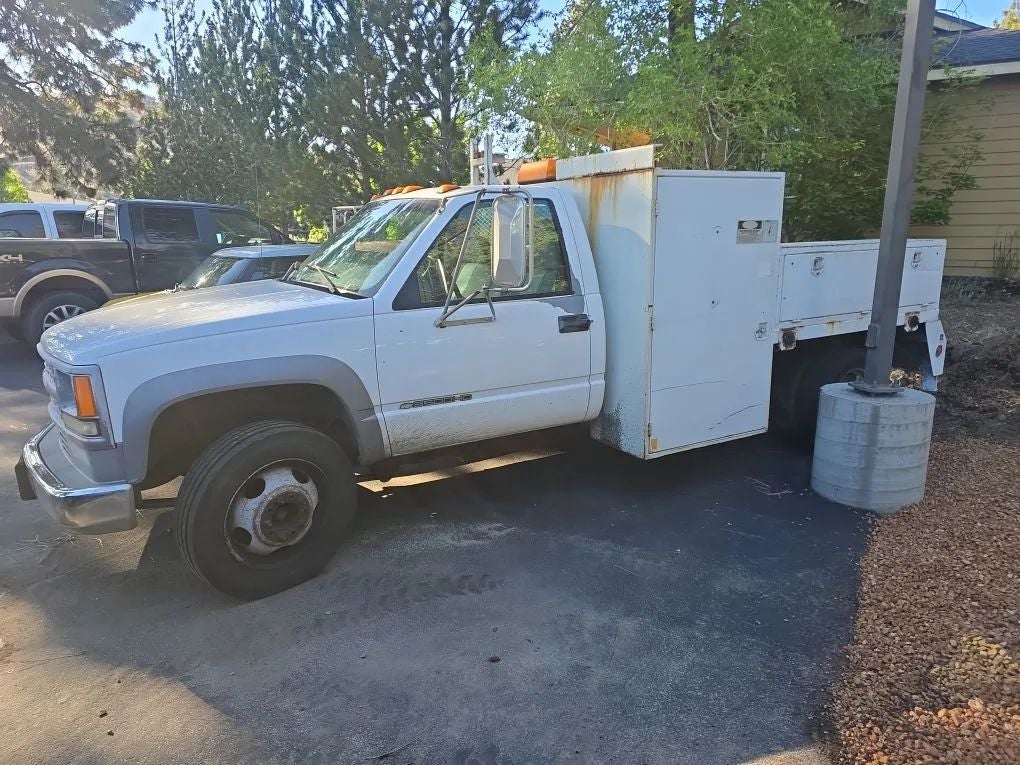

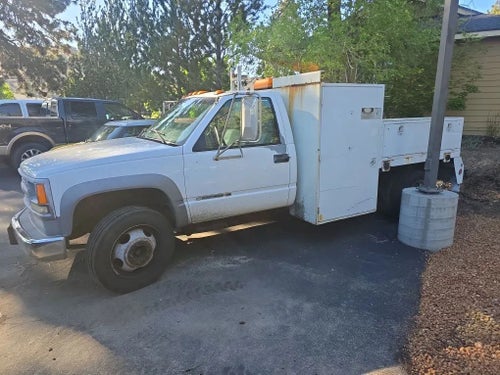

• Vehicle Name: Chevrolet C 3500 HD
• Body Style: Reg Cab 159.5" Wheelbase
• Body Code: ZW9
